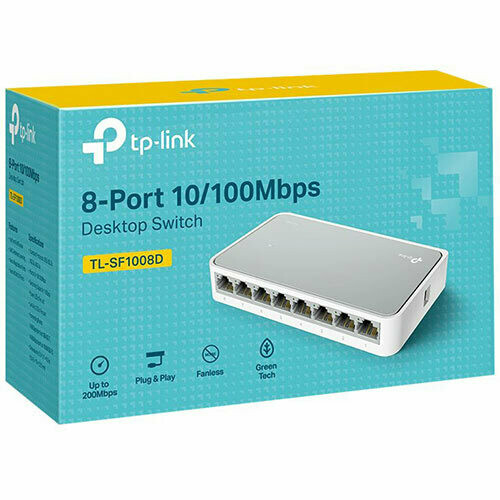

TP-Link TL-SF1008D - v11 - switch - 8 ports - unmanaged
+3

TP-Link TL-SF1008D - v11 - switch - 8 ports - unmanaged

00004
€19.00
In stock
1
Product Details

TP-LINK TL-SF1008D Unmanaged Fast Ethernet (10/100) White

Brand: TP-LINK

Product name: TL-SF1008D
Product code: TL-SF1008D V11
  • 8x 10/100Mbps auto-negotiation RJ45 ports, supports auto MDI/MDIX
  • Green Ethernet technology saves power consumption
  • IEEE 802.3x flow control provides reliable data transfer
  • Plastic case, desktop design
  • Plug and play, no configuration required

Marketing text

What This Product Does
The TL-SF1008D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1008D can save power consumption, making it an eco-friendly solution for your business network.

High Performance
TL-SF1008D Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1008D forwards and filters packets at full wire-speed for maximum throughput. With 2K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1008D work reliably.

TP-Link Green Technology
This new generation TL-SF1008D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.

Easy to Use
The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

Specs

Management features
Switch type
What switch device has, managed or unmanaged.
Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
The number of basic switching RJ-45 Ethernet ports (sockets).
8
Basic switching RJ-45 Ethernet ports type
The type/category of basic switching RJ-45 Ethernet ports (sockets).
Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity
8
Power connector
DC-in jack
Network
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3,IEEE 802.3ab,IEEE 802.3x
10G support
The product can use Oracle 10G, which is a database management system introduced in 2003.
Copper ethernet cabling technology
10BASE-T,100BASE-TX
Full duplex
A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Flow control support
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Auto-negotiation
Data transmission
Switching capacity
The data transfer capacity of the switch per second.
1.6 Gbit/s
MAC address table
The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
1000 entries
Store-and-forward
Protocols
Supported network protocols
Network protocols tested as compatible with this product e.g. FTP,HTML, POP.
CSMA/CD, TCP/IP
Design
Rack mounting
The type of mounting that can position devices in a shelving system (rack).
Design
Product colour
The colour e.g. red, blue, green, black, white.
White
LED indicators
Certification
FCC, CE, RoHs
Power
AC input voltage
The voltage of the AC electricity that is inputted into the product.
220 V
AC input frequency
50 Hz
Power consumption (max)
The maximum amount of power used by the device.
2.05 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
The measurement or extent of something from side to side.
134.5 mm
Depth
The distance from the front to the back of something.
79 mm
Height
The measurement of the product from head to foot or from base to top.
22.5 mm
Packaging data
Package type
The type of product package e.g. box.
Box

Product Description: TP-Link TL-SF1008D - v11 - switch - 8 ports - unmanaged



Device Type: Switch - 8 ports - unmanaged



Subtype: Fast Ethernet



Ports: 8 x 10/100



Performance: Switching capacity:1.6 Gbps



Features: Flow control,auto-negotiation,auto-uplink (auto MDI/MDI-X),store and forward,full duplex mode,fanless



Compliant Standards: IEEE 802.3,IEEE 802.3u,IEEE 802.3x



Power: AC 230V (50 Hz)



Dimensions (WxDxH): 13.45 cm x 7.9 cm x 2.25 cm
